CAPE LISBURNE LRRS (LUR)(PALU) AF 0 N UTC–9(–8DT) N68°52.51′ W166°06.66′
14 B NOTAM FILE PALU Not insp.

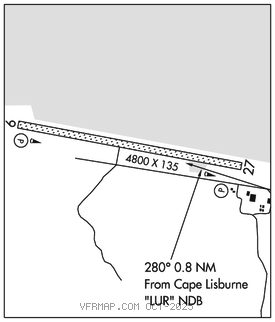

RWY 09–27: 4800X135 (GRVL) HIRL
RWY 09: REIL. PAPI(P2R)—GA 3.0° TCH 24′. Mtn.
RWY 27: REIL. PAPI(P2L)—GA 3.0° TCH 24′. Mtn. Rgt tfc.
SERVICE: LGT ACTIVATE HIRL Rwy 09–27, twy and ramp edge lgts, distance remaining lgts—126.2. PAPI and REIL opr 24 hrs.
MILITARY REMARKS: (OFFICIAL BUSINESS ONLY) Clsd to the public. Afld clsd wkends and all federal hol. All mil, govt and civ acft must obtain a PPR number 24 hrs prior to scheduled arr but no later than 1 hr prior to dep for the site. Ctc site personnel at DSN 317–552–9637/9730 or C907–552–9637/9730. Pax must coord all travel with ARS Program Mgmt (DSN 317–552–4400/9630 or C907–552–4400/9630) prior to any non–emerg travel to the site. All civ acft opr must have a current Civil Aircraft Landing Permit (CALP) before a PPR can be issued. IAW Air Force Instruction 10–1001 (http://static.e–publishing.af.mil/production/1/af_a3_5/publication/afi 10–1001/afi10–1001.pdf) at least 30 days prior to first intended ldg. Failure to obtain and have onboard apvd CALP will result in fines levied against violators and reports forwarded to the FAA FSDO and U.S. Attorney′s Office IAW 32 CFR 855 and USAF Operating Insturctions. Ctc 611 ASUS/LRAM at DSN: 317–552–1448/4176 or COM: 907–552–1448/4176 for CALPs. Mail CALP application to: Attn: 11 AF Airfield Manager 10471 20th Street Suite 231, JBER, AK 99506. Civil Aircraft Landing Permit (CALP) contact numbers DSN: 317–552–1448/4176 or COM: (907) 552–1448/4176, e–mail: aklandingpermit@us.af.mil. Establish radio ctc as soon as possible prior to ldg. CAUTION: Rwy lctd at base of steep mountain. Mountain slopes in apch zone both ends of rwy. CAUTION: sfc winds over 10 KTs may produce severe turbulence. CAUTION: Numerous bird nests in cliff invof arpt.
AIRPORT MANAGER: 907-552-9730
WEATHER DATA SOURCES: AWOS–3 (907) 552–9730
COMMUNICATIONS: CTAF 126.2
CAPE LISBURNE RCO 122.3 (KOTZEBUE RADIO)
ANCHORAGE CENTER APP/DEP CON 119.65 363.25
RADIO AIDS TO NAVIGATION: NOTAM FILE LUR.
NDB/DME (HW) 385 LUR Chan 20(Y) N68°52.28′ W166°04.56′ at fld. 61/7E. NDB has no standby transmitter, May be shutdown without prior notice
NDB unusable:
141°–169° byd 20 NM
DME unusable:
004°–129° byd 20 NM
129°–291° byd 5 NM blo 9,000′
COMM/NAV/WEATHER REMARKS: For a LC call to Kotzebue FSS dial 907–442–3310. For a toll free call to Kotzube FSS dial 1–800–478–7460. For a toll free call to Fairbanks FSS dial 1–800–248–6516. NDB has no standby transmitter, may be shutdown without PN. DME channel 20(Y) paired with VHF freq 108.35.
