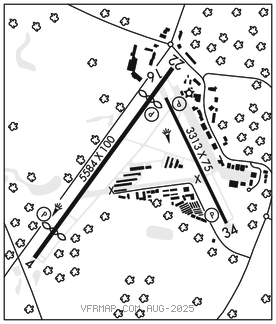

ST SIMONS ISLAND (SSI)(KSSI) 1 N UTC–5(–4DT) N31°09.12′ W81°23.46′
19 B LRA NOTAM FILE SSI
RWY04–22:H5584X100 (ASPH–GRVD) S–45, D–60 PCN 38 F/B/X/T HIRL
RWY04: REIL. PAPI(P2L)—GA 4.0° TCH 57′. Thld dsplcd 782′. Road.
RWY 22: PAPI(P2L)—GA 4.0° TCH 54′. Thld dsplcd 911′. Trees.
RWY 16–34: H3313X75 (ASPH) S–14, D–30 HIRL
RWY 16: PAPI(P2L)—GA 3.25° TCH 46′. Trees.
RWY 34: PAPI(P2L)—GA 3.75° TCH 55′. Trees.
RUNWAY DECLARED DISTANCE INFORMATION
RWY 04: TORA–5580 TODA–5580 ASDA–5580 LDA–4798
RWY 22: TORA–5580 TODA–5580 ASDA–5580 LDA–4671
SERVICE: S3 FUEL 100LL, JET A, A+ OX1, 2, 3, 4 LGT ACTVT REIL Rwy 04; HIRL Rwy 04–22 and 16–34—CTAF.
NOISE: Adj residential area to the SE and SSW of Rwy 16–34 extremely noise sensitive. Pref noise–abatement arrival for hel tfc is a straight–in to Rwy 34 then a mid–field turn to ldg. All wheeled hel gnd taxi to final prkg. TGL for Rwy 04–22 and Rwy 16–34 are not in compliance with noise program.
AIRPORT REMARKS: Attended 1200–0100Z‡. Birds and wildlife on and invof arpt. PPR for svc and fuel after hrs call 912–638–8617. Use caution due to congested asp with turbine, nonturbine, and trng acft. BQK located 7 NM NW. Jekyll Island arpt 09J located 4 NM S using same CTAF freq 123.05. Rwy 22 pref for light and variable winds or crosswinds. All VFR acft adhere to std left hand tfc pat. Acft dep Rwy 34 use extreme caution–apch end of Rwy 04 not visible from apch end of Rwy 34. All arr and dep, including acft flying inst app, are requested to report 10 miles from the arpt, intns and PSN reports to—St Simons–CTAF 123.05. Flight Notification Service (ADCUS) avbl.
AIRPORT MANAGER: 912-265-2070
WEATHER DATA SOURCES: AWOS–3PT 120.025 (912) 602–0972.
COMMUNICATIONS: CTAF/UNICOM 123.05
RCO 122.2 (MACON RADIO)
®JACKSONVILLE CENTER APP/DEP CON 126.75
CLEARANCE DELIVERY PHONE: For CD ctc Jacksonville ARTCC at 904-845-1592.
AIRSPACE: CLASS E.
RADIO AIDS TO NAVIGATION: NOTAM FILE SSI.
BRUNSWICK (L) (L) VORTACW 109.8 SSI Chan 35 N31°03.03′ W81°26.76′ 029° 6.7 NM to fld. 6/4W.
COMM/NAV/WEATHER REMARKS: FBO svcs avbl on 130.65.
