SAN CARLOS (SQL)(KSQL) 2 NE UTC–8(–7DT) N37°30.71′ W122°14.97′
6 B TPA–See Remarks NOTAM FILE SQL

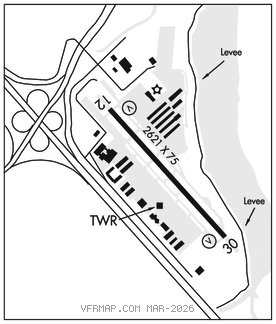

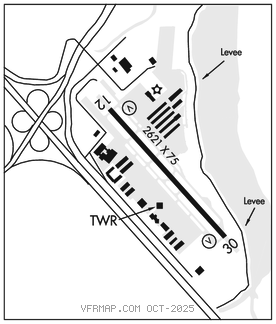

RWY 12–30: H2621X75 (ASPH) S–12.5 MIRL
RWY 12: REIL. VASI(V2L)–GA 3.0° TCH 25′. Pole.
RWY 30: REIL. VASI(V2L)–GA 3.0° TCH 25′. Rgt tfc.
SERVICE: S2 FUEL 100LL, JET A, A+, UL94 OX 2 LGT When ATCT clsd; actvt MIRL Rwy 12–30 and REIL Rwy 12–30–119.0. Rwy 30 VGSI unusbl byd 8 deg left of cntrln.
NOISE: Noise sensitive areas south through northeast of arpt. For noise abatement procedures ctc arpt manager 650–573–3700.
AIRPORT REMARKS: Attended 1500–0500Z‡. Migratory bird activity on and invof arpt. 100′ steel transmission twrs and powerlines located 750′ west and parallel to Rwy 12–30. 7′ lighted dike located in rwy safety area on AER 30. Calm wind Rwy 12. No touch and go ldgs, or stop and go ldgs, when twr clsd. TPA–806(800). TPA applies to both fixed–wing and hel. Fixed–wing right tfc Rwy 30/left tfc Rwy 12. Hel right tfc Rwy 12/left tfc Rwy 30. Large helicopter should avoid overflight of dirt infield areas.
AIRPORT MANAGER: 650-573-3700
WEATHER DATA SOURCES: AWOS–3P 125.9 (650) 593–0613. LAWRS.
COMMUNICATIONS: CTAF 119.0 ATIS 125.9 650–593–0613 UNICOM 122.95
®NORCAL APP CON 133.95 135.65
TOWER 119.0 (1500–0500Z‡) GND CON 121.6
®NORCAL DEP CON 135.65
CLEARANCE DELIVERY PHONE: For CD when ATCT is clsd ctc NorCal Apch at 916-361-3829.
AIRSPACE: CLASS D svc 1500–0500Z‡; other times CLASS G.
RADIO AIDS TO NAVIGATION: NOTAM FILE OAK.
WOODSIDE (VL) (L) VORW/DME 113.9 OSI Chan 86 N37°23.55′ W122°16.88′ 355° 7.3 NM to fld. 227017E.
VOR unusable:
030°–050° byd 15 NM
055°–067° byd 40 NM blo 14,500′
076°–081° byd 40 NM
111°–123° byd 40 NM blo 18,000′
141°–156° byd 40 NM
215°–231° byd 40 NM
225°–305° byd 20 NM blo 9,000′
232°–243° byd 40 NM blo 18,000′
257°–279° byd 40 NM
280°–290° byd 40 NM blo 18,000′
291°–309° byd 40 NM
315°–320° byd 40 NM
330°–350° blo 11,000′
351°–354° byd 40 NM
DME unusable:
160°–350° blo 11,000′
190°–230° byd 20 NM blo 13,000′
230°–350° byd 20 NM
COMM/NAV/WEATHER REMARKS: Emerg frequency 121.5 not avbl at tower.
