JOHNSTOWN
JOHN MURTHA JOHNSTOWN/CAMBRIA CO (JST)(KJST) P (ANG ARNG AR) 3 NE UTC–5(–4DT) N40°18.93′ W78°50.08′ 2284 B Class I, ARFF Index A NOTAM FILE JST

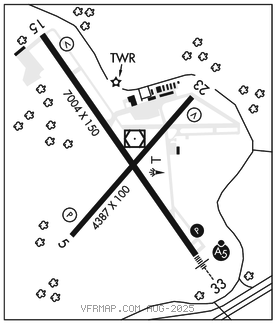

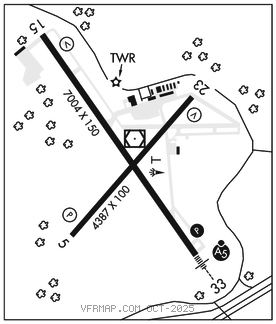

RWY 15–33: H7004X150 (CONC–GRVD) S–93, D–183, 2D–357, 2D/2D2–845 PCN 61 R/B/W/U HIRL
RWY 15: VASI(V4L)–GA 3.0° TCH 52′. Trees.
RWY 33: MALSR. PAPI(P4R)–GA 3.0° TCH 53′. Trees.
RWY 05–23: H4387X100 (ASPH–GRVD) S–62, D–87, 2S–110 PCN 39 F/A/W/T MIRL
RWY 05: REIL. PAPI(P4L)–GA 3.0° TCH 44′. Trees.
RWY 23: REIL. VASI(V4L)–GA 3.0° TCH 45′. Bldg.
RUNWAY DECLARED DISTANCE INFORMATION
RWY 05: TORA–4387 TODA–4387 ASDA–4387 LDA–4387
RWY 15: TORA–7004 TODA–7004 ASDA–6698 LDA–6698
RWY 23: TORA–4387 TODA–4387 ASDA–4387 LDA–4387
RWY 33: TORA–7004 TODA–7004 ASDA–6484 LDA–6484
SERVICE: S4 FUEL 100LL, JET A LGT When twr clsd ACTIVATE MALSR Rwy 33, PAPI Rwy 33, HIRL Rwy 15–33, MIRL 05–23, and all twy lgts–CTAF. PAPI Rwy 05 unavbl when ATCT clsd. MILITARY– FUEL A, A+ (1100–0400Z‡, C814–361–3500; OT 3 hr PN, C814–254–2425. $70 fee per occurrence.) (NC–100LL)
AIRPORT REMARKS: Attended 1200–0400Z‡. Deer and birds on and invof arpt. 48 hrs PPR for unscheduled air carriers ops with more than 30 passenger seats, call arpt manager 814–536–0002. Twy B between Rwy 05–23 and Twy B2 rstd to acft with wingspan 78′ or less. Ldg fee.
MILITARY REMARKS: ARNG PPR ctc ARNG 1300–2130Z, 814–532–7720.
AIRPORT MANAGER: 814-536-0002
WEATHER DATA SOURCES: ASOS (814) 535–3511
COMMUNICATIONS: CTAF 125.75 ATIS 118.325 UNICOM 122.95
®JOHNSTOWN APP/DEP CON 128.2 121.2 244.875 (1200–0400Z‡ or ctc 814–532–5960), other times ctc
CLEVELAND CENTER 124.4 327.1 (0400–1200Z‡) or ctc Cleveland ARTCC at 440–774–0234.
TOWER 125.75 253.5 (1200–0400Z‡) GND CON 121.6 CLNC DEL 126.85
KEYSTONE OPS ARNG 138.55 241.35 46.75
CLEARANCE DELIVERY PHONE: For CD ctc Johnstown Apch at 814-532-5960, when Apch clsd ctc Cleveland ARTCC at 440-774-0213.
AIRSPACE: CLASS D svc 1200–0400Z‡; other times CLASS G.
RADIO AIDS TO NAVIGATION: NOTAM FILE JST.
JOHNSTOWN (L) (L) VORW/DME 113.0 JST Chan 77 N40°19.00′ W78°50.05′ at fld. 2279/6W.
VOR unusable:
088°–102° byd 25 NM
120°–135° byd 25 NM
ILS 110.1 I–JST Rwy 33. Class IB. Glideslope unusable byd 5° left of course. Unmonitored when ATCT clsd.
COMM/NAV/WEATHER REMARKS: UNICOM frequency 122.95 avbl for ground svcs only. All tfc to ARNG ramp ctc Keystone Ops: 138.55, 241.35, 46.75, ramp deconfliction 46.75.
