PHOENIX–MESA GATEWAY (IWA)(KIWA) 20 SE UTC–7 N33°18.47′ W111°39.33′
1384 B TPA–See Remarks Class I, ARFF Index C NOTAM FILE IWA MON Airport

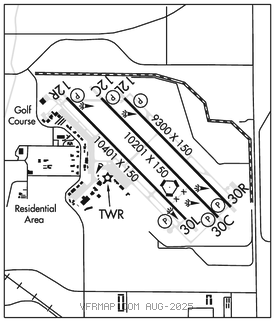

RWY 12R–30L: H10401X150 (CONC) S–55, D–95, 2S–120, 2D–185, 2D/2D2–550 PCN 62 R/C/W/T MIRL
RWY 12R: PAPI(P4L)–GA 3.0° TCH 60′. Rgt tfc. 0.3% up.
RWY 30L: PAPI(P4L)–GA 3.0° TCH 60′. 0.4% down.
RWY 12C–30C: H10201X150 (ASPH–CONC) S–55, D–95, 2S–120, 2D–185, 2D/2D2–550 PCN 71 R/D/W/T HIRL
RWY 12C: PAPI(P4L)–GA 3.0° TCH 50′. 0.3% up.
RWY 30C: PAPI(P4L)–GA 3.0° TCH 49′. 0.3% down.
RWY 12L–30R: H9300X150 (CONC) S–75, D–210, 2S–175, 2D–590, 2D/2D2–850 PCN 88 R/C/W/T HIRL
RWY 12L: REIL. PAPI(P4L)–GA 3.0° TCH 74′. 0.3% up.
RWY 30R: REIL. PAPI(P4L)–GA 3.0° TCH 75′. Rgt tfc. 0.3% down.
RUNWAY DECLARED DISTANCE INFORMATION
RWY 12C:TORA–10201 TODA–10201 ASDA–10201 LDA–10201
RWY 12L:TORA–9300 TODA–9300 ASDA–9300 LDA–9300
RWY 12R:TORA–10401TODA–10401 ASDA–10401 LDA–10401
RWY 30C:TORA–10201 TODA–10201 ASDA–10201 LDA–10201
RWY 30L:TORA–10401 TODA–10401 ASDA–10401 LDA–10401
RWY 30R:TORA–9300 TODA–9300 ASDA–9300 LDA–9300
SERVICE: S6 FUEL 100LL, JET A OX 3, 4 LGT When ATCT clsd lgts on consly.
NOISE: Noise abatement procedures in effect. Avoid low overflight of noise sensitive areas; info–480–988–7637.
AIRPORT REMARKS: Attended continuously. Fuel avbl H24–480–988–7700 or 129.875. Wildlife invof arpt. Rwy 30R sport field lgtg E of apch. Non emergency AV–8 model ops limited to Rwy 12L–30R. 24 hr PPR unscheduled acr ops gtr than 30 pax seats–arpt ops. Large/heavy inboard engine taxi only. Twy T avbl to wingspan btn 119–170 ft with wing walkers from Twy W south of Twy V. 7 ft fence S portion of middle ramp. Twy Y rstd to wingspan less than 79 ft. TPA–Fixed Wing 2602(1218), Jet 3102(1718), Rotorcraft 2102(718). U.S. Government owned, non–revenue and flight training up to 12,500 lbs landing fee NA. NOTE: See Special Notices–Arrival Alert.
AIRPORT MANAGER: 480-988-7708
WEATHER DATA SOURCES: AWOS–3 133.5 (480) 988–9428. AWOS is available from 0700–1200Z‡ (mst) on 133.5, or 24 hrs via phone: 480–988–9428.
COMMUNICATIONS: CTAF 120.6 ATIS 133.5 (1200–0700Z)
®PHOENIX APP/DEP CON 124.9
GATEWAY TOWER 120.6 1200–0700Z GND CON 128.25
CLNC DEL 135.05
CLEARANCE DELIVERY PHONE: For CD when ATCT clsd, ctc Phoenix Apch at 602-306-2565.
AIRSPACE: CLASS D svc 1200–0700Z; other times CLASS G.
RADIO AIDS TO NAVIGATION: NOTAM FILE IWA.
WILLIE (L) (L) VORTACW 113.3 IWA Chan 80 N33°18.19′ W111°39.09′ at fld. 1367/13E.
VOR unusable:
300°–320° byd 25 NM blo 7,500′
320°–300° byd 20 NM blo 7,500′
TACAN AZIMUTH unusable:
020°–055° byd 30 NM blo 12,000′
150°–195° byd 20 NM blo 7,500′
DME unusable:
020°–055° byd 30 NM blo 12,000′
150°–195° byd 20 NM blo 7,500′
ILS 110.15 I–IWA Rwy 30C. Class IE. LOC unusable byd 25° left and right of course. Unmonitored 1200–1900Zl.
COMM/NAV/WEATHER REMARKS: AWOS is avbl from 0700–1200Z on 133.5, or 24 hrs via phone 480–988–9428.
