KISSIMMEE GATEWAY (ISM)(KISM) 16 SW UTC–5(–4DT) N28°17.39′ W81°26.22′
82 B NOTAM FILE ISM

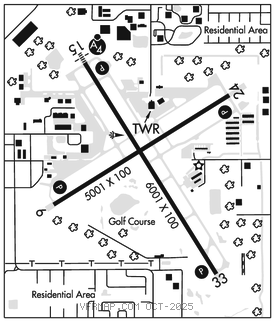

RWY 15–33: H6001X100 (ASPH–GRVD) S–114, D–189, 2S–95, 2D–300 PCN 45 F/A/X/T MIRL
RWY 15: MALSF. PAPI(P4L)—GA 3.0° TCH 49′. Tree. Rgt tfc.
RWY 33: REIL. PAPI(P4L)—GA 3.0° TCH 48′. Fence.
RWY 06–24: H5001X100 (ASPH–GRVD) S–89, D–140 PCN 33 F/A/X/T MIRL
RWY 06: REIL. PAPI(P4L)—GA 3.0° TCH 45′. Trees. Rgt tfc.
RWY 24: REIL. PAPI(P4L)—GA 3.0° TCH 45′. Pole.
SERVICE: S4 FUEL 100LL, JET A OX1 LGT When twr clsd, ACTIVATE MALSF Rwy 15, REIL Rwy 06, Rwy 24 and Rwy 33, PAPI Rwy 06, Rwy 15, Rwy 24 and Rwy 33, MIRL Rwy 06–24 and Rwy 15–33—CTAF.
NOISE: Noise sensitive area 1/2 mi N of AER 24. Dep Rwy 06 early turnouts not authorized. Req all jets/turbo props use NBAA close–in proc.
AIRPORT REMARKS: Attended 1200–0300Z‡. Low lvl VFR hel, wildlife and birds on and invof arpt. Ultralgt acft na except PPR—amgr. Hel run on lndg na. Rwy 15 has unlgted obstns present in the apch due to 52 ft trees 1960 ft bfr AER. Rwy 33 mult unlgt obstns first 3000′; 250–500′ E and W of cntrln. Rwy 06 holding bay rstrd to acft with wingspan of 49′ or less. Rwy 15 calm wind rwy.
AIRPORT MANAGER: 407-518-2516
WEATHER DATA SOURCES: AWOS–3PT (407) 847–0533
COMMUNICATIONS: CTAF 124.45 ATIS 128.775 UNICOM 122.95
®ORLANDO APP/DEP CON 119.4
TOWER 124.45 (1200–0300Z‡) GND CON 121.7
CLNC DEL 121.7 CLNC DEL 123.95 (when twr clsd)
AIRSPACE: CLASS D svc 1200–0300Z‡; other times CLASS G.
RADIO AIDS TO NAVIGATION: NOTAM FILE ORL.
ORLANDO (VH) (H) VORTACW 112.2 ORL Chan 59 N28°32.56′ W81°20.10′ 200° 16.1 NM to fld. 102/0E.
TACAN AZIMUTH unusable:
066°–084°
246°–289° byd 17 NM blo 2,000′
246°–289° byd 28 NM blo 2,500′
VOR unusable:
075°–089° byd 40 NM blo 8,000′
075°–089° byd 53 NM
090°–100° byd 40 NM
235°–245° byd 40 NM
260°–296° byd 40 NM blo 2,000′
260°–296° byd 46 NM blo 5,000′
260°–296° byd 57 NM
300°–314° byd 40 NM blo 4,000′
300°–314° byd 55 NM blo 6,000′
300°–314° byd 66 NM
320°–330° byd 40 NM
340°–345° byd 40 NM
ILS/DME 109.75 I–ISM Chan 34(Y) Rwy 15. Unmonitored.
