SIERRA VISTA MUNI–LIBBY AAF (FHU)(KFHU) MIL/CIV A 3 N UTC–7 N31°35.31′ W110°20.66′
4719 B TPA–See Remarks NOTAM FILE FHU

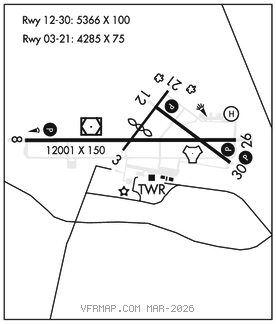

RWY 08–26: H12001X150 (CONC) S–75, D–200, 2D–450, 2D/2D2–700 PCN 58 R/B/W/T HIRL 1.0% up W
RWY 08: PAPI(P4L)–GA 3.0° TCH 50′.
RWY 26: PAPI(P4L)–GA 3.0° TCH 80′. Rgt tfc.
RWY 12–30: H5366X100 (ASPH–CONC) S–46, D–106, 2D–137, 2D/2D2–172 PCN 92 F/A/W/T MIRL
RWY 12: PAPI(P4L)–GA 3.0° TCH 51′.
RWY 30: PAPI(P4R)–GA 3.0° TCH 51′. Rgt tfc.
RWY 03–21: H4285X75 (ASPH–CONC) PCN 8 F/A/W/T MIRL 2.0% up SW
RWY 03: Thld dsplcd 1253′.
RWY 21: Rgt tfc.
RUNWAY DECLARED DISTANCE INFORMATION
RWY 03: TORA–4285 TODA–4285 ASDA–4285 LDA–3032
RWY 08: TORA–12001 TODA–12001 ASDA–12001 LDA–12001
RWY 12: TORA–5366 TODA–5366 ASDA–5366 LDA–5366
RWY 21: TORA–4285 TODA–4285 ASDA–4285 LDA–4285
RWY 26: TORA–12001 TODA–12001 ASDA–12001 LDA–12001
RWY 30: TORA–5366 TODA–5366 ASDA–5366 LDA–5366
SERVICE: FUEL 100, JET A LGT ACTIVATE PAPI Rwy 08, 26, 12 and 30, HIRL Rwy 08–26, MIRL Rwy 03–21 and 12–30 and perimeter lgt H1–CTAF. FUEL F24 (Jet AA); Mil pol 1330–0100Z Mon–Fri; exc hol; otr times 24 hr prior notice–D879–28602862. Pol svc rqr crew atnd to specify fuel/oil rqmnts; fuel lmtd to 6000 gal; jet a avbl 1400–2230Z dly; otr times C520–234–3552; svc fee. F24 (Jet AA) with icing inhibitor. Jet A avbl 1400–2230Z dly; OT C520–234–3552, svc fee. Fuel A w/o icing inhibitor. TRAN ALERT Tsnt ctc Libby ATC or BAOPS to coord prkg.
AIRPORT REMARKS: Attended Mon–Fri 1400–2230Z. Mil jet ops wkdays; bird haz invof rwys on tkof and apch; deer on and invof arpt spcly at night. Twy P and S edge lgt N/A.When Class D asp in efct unmanned aerial vehicles opr sfc–7000 ft MSL. Bird haz exists all rwys. Asp Class D sfc area lmtd to dep and FSL durg ngt unmanned acft ops; exp delays. Manned and unmanned acft not auth in same tfc pat. Manned arr may flw unmanned acft on FNA. Civil tfc pat unavbl durg dalgt unmanned acft tfc pat ops; dep and FSL auth. Non scheduled arriving acft rqrg assistance, ctc GOC 533–2291/2292. TPA–fixed wing north; rotary wing south; alt fixed wing reciprocating 5700 ft; rotor wing 5500 ft; fixed wing turboprop/jet 6200 ft. Twy G and J lmtd to single wheel acft max 33,000 lb; Twy K lmtd to single wheel acft max 50,000 lb; Twy D and acft apron on NW side lmtd to dual wheel acft max 100,000 lb. Crcg S of Rwy 08 and 30 na. NOTE: See Special Notices–Tethered Areostat Radar System (TARS).
MILITARY REMARKS: Opr 0600–0600Z Sun–Sat; exc hol. Otr time 72 hr PPR–D879–28602862/C520–538–28602862. See flip AP/1 supplementary arpt rmk. RSTD 24 hr PPR for tnst mil; civ acft PPR to enter mil ramp. Twy G lmtd to single wheel acft max 33,000 lbs, Twy K ltd to single wheel acft max 50,000 lbs. Circling not authorized South of Rwy 08 and Rwy 30. CAUTION Exp ws all rwys; arpt SW wind may not rep wind on FNA. Extv mil jet ops wkdays. Rwy 08–26 and 12–30 ovrns unavbl; blw 25 pavement cond index. Twy P and S edge lgt N/A. MALSR not installed in conjunction with Rwy 26 ILS. CSTMS/AG/IMG Avbl with 72 hr PN for US mil or DoD contr acft only. TFC PAT 981 ft AGL fixed wing unmanned acft. Do not exceed 5,700 ft until der. MISC Tsnt and RON acft using mil side sign in at BAOPS prior to depg flt line. Assault strip 5 NM NE 72 hr ppr. Nonsked arr rqrg asst–EOC 533–2291. Prkg mil tsnt sign in at BASE OPS prior to lv flt line. Wx obsn/fcst 0600–0600Z Sun–Fri; exc hol. Otr times ASOS. Libby wx avbl–122.95 D879–3798/2865/C520–538–3798/2865. Remote briefing svc avbl 25 OWS Davis–Monthan AFB D228–6598/6599/6588/C520–228–6598/6599/6588 or https://25ows.us.af.mil. A Libby BAOPS 0600–0600Z Sun–Sat; exc hol; other times 72 hr PPR. D879–28602862, C520–538–28602862.
AIRPORT MANAGER: 520-458-5775
WEATHER DATA SOURCES: ASOS
COMMUNICATIONS: CTAF 124.95 ATIS 134.75 263.025 UNICOM 122.95
®LIBBY AAF GCA APP/DEP CON 127.05 254.25 (BAOPS Mon 0600Z–Sat 0600Z; exc hol. Otr time 72 hr PPR–D879–2862/2860C520–538–2862/2860.)
®ALBUQUERQUE CENTER APP/DEP CON 134.45 327.15
LIBBY TOWER 124.95 284.75 (0600Z Mon–0600Z Sat; exc hol, otr time 72 hr PPR–D879–2862/2860C520–538–2862/2860).
GND CON 121.7 268.7
LIBBY OPS 122.95
AIRSPACE: CLASS D svc Mon 0600–Sat 0600Z exc hol, other times by NOTAM; other times CLASS G..
RADIO AIDS TO NAVIGATION: NOTAM FILE DUG.
DOUGLAS (VL) (H) VORTACW 108.8 DUG Chan 25 N31°28.36′ W109°36.12′ 268° 38.7 NM to fld. 4131/13E.
TACAN AZIMUTH unusable:
045°–065° byd 26 NM blo 10,000′
065°–095° byd 28 NM blo 9,500′
355°–010° byd 35 NM blo 11,300′
DME unusable:
045°–065° byd 26 NM blo 10,000′
065°–095° byd 28 NM blo 9,500′
355°–010° byd 35 NM blo 11,300′
VOR unusable:
046°–063° byd 40 NM blo 11,000′
046°–063° byd 49 NM blo 16,000′
046°–063° byd 63 NM
253°–263° byd 40 NM blo 16,000′
253°–263° byd 66 NM
264°–277° byd 40 NM
278°–288° byd 40 NM blo 16,000′
278°–288° byd 52 NM
305°–316° byd 40 NM
345°–045° byd 40 NM
LIBBY (T) (T) VORW/DME 113.6 FHU Chan 83 N31°35.38′ W110°21.30′ at fld. 4665/13E. NOTAM FILE FHU. VOR unmonitored when GCA clsd. Military use: No NOTAM MP 1200–1500Z 4th Thurs of month
VOR unusable:
110°–235° byd 10 NM
DME unusable:
110°–235° byd 10 NM
FORT HUACHUCA (T) TACAN Chan 53 ARH (111.6) N31°35.13′ W110°20.34′ at fld. 466012E. NOTAM FILE FHU. unmonitored when twr clsd.
TACAN unusable:
105°–250° byd 10 NM
120°–300° byd 20 NM
Military use: No NOTAM MP 1200–1500Z 1st Thursday of month
ILS 109.9 I–FHU Rwy 26. Class IE. Unmonitored when GCA clsd. No NOTAM MP 1200–1500Z 3rd Thursday of Month.
COMM/NAV/WEATHER REMARKS: When ATCT clsd 121.5 mntd for emerg. USAF wx fcst avbl 1200–0300Z fm Davis Monthan AFB. See Term FLIP for Radar Minima. • • • • • • • • • • • • • • • • • •
HELIPAD H1: H40X40 (ASPH) PERIMETER LGTS
HELIPORT REMARKS: ACTVT perimeter lgts Helipad H1–CTAF.
