WEST BEND MUNI (ETB)(KETB) P (ARNG) 3 E UTC–6(–5DT) N43°25.33′ W88°07.68′
888 B NOTAM FILE ETB

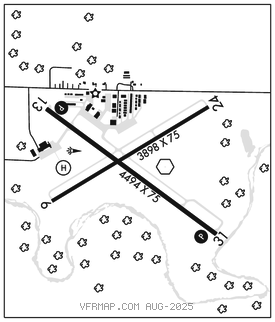

RWY 13–31: H4494X75 (ASPH) S–15 MIRL 0.3% up NW
RWY 13: REIL. PAPI(P4L)—GA 3.0° TCH 37′. Road.
RWY 31: REIL. VASI(V2L)—GA 3.0° TCH 28′. Trees.
RWY 06–24: H3898X75 (ASPH) S–12 MIRL 0.3% up SW
RWY 06: Trees.
RWY 24: Road.
SERVICE: S4 FUEL 100LL, JET A LGT Actvt REIL Rwy 13 and 31; PAPI Rwy 13; VASI Rwy 31; MIRL Rwy 06–24—CTAF. MIRL Rwy 13–31 preset to low SS–SR, to incr intst and actvt—CTAF.
MILITARY— FUEL J8(Mil)–PPR. (NC–100LL, A)
AIRPORT REMARKS: Attended 1400–0000Z‡. Wildlife on and invof arpt.
AIRPORT MANAGER: 262-483-7432
WEATHER DATA SOURCES: AWOS–3 120.0 (262) 334–6161. Cig unrelbl.
COMMUNICATIONS: CTAF/UNICOM 123.05
®MILWAUKEE APP/DEP CON 125.35
CLNC DEL 124.75
CLEARANCE DELIVERY PHONE: For CD ctc Chicago ARTCC at 630-906-8921.
RADIO AIDS TO NAVIGATION: NOTAM FILE MKE.
BADGER (H) (H) VORW/DME 116.4 BAE Chan 111 N43°07.01′ W88°17.06′ 018° 19.6 NM to fld. 1070/2E.
(T) VORW 109.8 BJB N43°25.32′ W88°07.51′ at fld. 871/1W. NOTAM FILE ETB.
COMM/NAV/WEATHER REMARKS: Ctc ARNG OPS 40.8/40.9/41.6/138.625/240.3/241.0.
• • • • • • • • • • • • • • • • • •
HELIPAD H1: H100X100 (ASPH) PERIMETER LGTS
HELIPORT REMARKS: When using military helipad military helicopters use pattern to the N or W of arpt. Helipad H1 blue perimeter lgts.
