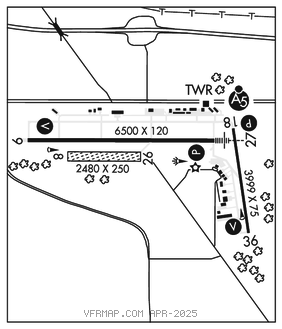

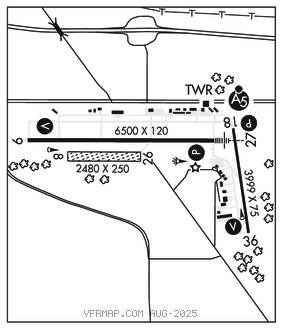

ELKHART MUNI (EKM)(KEKM) 3 NW UTC–5(–4DT) N41°43.16′ W86°00.19′
778 B NOTAM FILE EKM
RWY 09–27: H6500X120 (CONC–GRVD) S–40, D–60, 2D–120 HIRL
RWY 09: REIL. VASI(V4L)—GA 3.0° TCH 38′. RVR–R Trees.
RWY 27: MALSR. PAPI(P4L)—GA 3.0° TCH 46′. RVR–T Trees.
RWY 18–36: H3999X75 (ASPH–GRVD) S–45, D–65, 2S–82 MIRL
RWY 18: REIL. PAPI(P4L)—GA 3.0° TCH 38′. Trees.
RWY 36: REIL. VASI(V4L)—GA 4.0° TCH 57′. Trees.
RWY 08–26: 2480X250 (TURF)
RUNWAY DECLARED DISTANCE INFORMATION
RWY 08: TORA–2480 TODA–2480 ASDA–2480 LDA–2480
RWY 09: TORA–6500 TODA–6500 ASDA–6500 LDA–6500
RWY 18: TORA–4001 TODA–4001 ASDA–4001 LDA–4001
RWY 26: TORA–2480 TODA–2480 ASDA–2480 LDA–2480
RWY 27: TORA–6500 TODA–6500 ASDA–6500 LDA–6500
RWY 36: TORA–4001 TODA–4001 ASDA–4001 LDA–4001
SERVICE: S3 FUEL 100LL, JET A OX 4 LGT ACTIVATE MALSR Rwy 27, REIL Rwy 09, Rwy 18 and Rwy 36, VASI Rwy 09 and Rwy 36, PAPI Rwy 18 and Rwy 27—CTAF. When twr clsd HIRL Rwy 09–27, MIRL Rwy 18–36 preset low intst; incr intst—CTAF. Rwy 36 VASI unusbl 7° left and right of cntrln.
AIRPORTREMARKS:Attended 1100–0300Z‡. Rwy 08–26 mkd white corner mkrs. VFR ops during twr hrs only. Twy mkd with reflectors, Twy A unavbl to acft with more than 30 pax seats. Rwy 18–36 cntrln and striping faded.
AIRPORT MANAGER: 574-264-5217
WEATHER DATA SOURCES: AWOS–3 124.475 (574) 264–9002.
COMMUNICATIONS: CTAF 119.5 UNICOM 122.95
®SOUTH BEND APP/DEP CON 118.55 (1030–0500Z‡ Mon–Fri, 1030–2200Z‡ Sun) other times ctc
®CHICAGO CENTER APP/DEP CON 127.55
TOWER 119.5 (1200–0200Z‡ Mon–Fri, 1300–2300Z‡ Sat–Sun) GND CON 121.8
CLNC DEL 121.8 119.7 (When Elkhart twr clsd).
CLEARANCE DELIVERY PHONE: For CD when ATCT clsd, ctc South Bend ATCT on freq. When South Bend ATCT clsd, ctc Chicago ARTCC at 630-906-8921.
AIRSPACE: CLASS D svc 1200–0200Z‡ Mon–Fri, 1300–2300Z‡ Sat–Sun; other times CLASS G.
RADIO AIDS TO NAVIGATION: NOTAM FILE GSH.
GOSHEN (H) (H) VORTACW 113.7 GSH Chan 84 N41°31.51′ W86°01.68′ 005° 11.7 NM to fld. 852/0E.
TAC AZM unusable:
071°–129°
VOR unusable:
281°–349° byd 15 NM
DME unusable:
076°–086° byd 30 NM
GIPPER (H) (H) VORTACW 115.4 GIJ Chan 101 N41°46.12′ W86°19.11′ 102° 14.5 NM to fld. 804/0E. NOTAM FILE LAN.
TACAN AZIMUTH unusable:
245°–255°
276°–306° byd 25 NM blo 3,000′
307°–312° byd 25 NM blo 4,500′
313°–331° byd 25 NM blo 3,000′
DME unusable:
276°–306° byd 25 NM blo 3,000′
307°–312° byd 25 NM blo 4,500′
313°–331° byd 25 NM blo 3,000′
ILS 111.5 I–OUP Rwy 27. Class IB.
