TSTC WACO (CNW)(KCNW) 8 NE UTC–6(–5DT) N31°38.27′ W97°04.45′
470 B NOTAM FILE FTW MON Airport

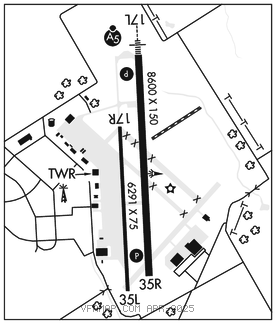

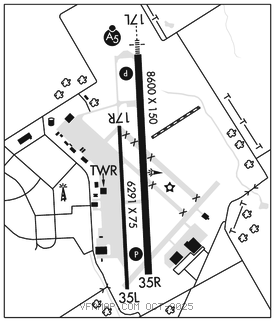

RWY 17L–35R: H8600X150 (ASPH) S–50, D–200, 2S–175, 2D–450 MIRL
RWY 17L: MALSR. PAPI(P4R)–GA 3.0° TCH 52′.
RWY 35R: PAPI(P4L)–GA 3.0° TCH 41′. Trees. Rgt tfc.
RWY 17R–35L: H6291X75 (CONC) S–25, D–76, 2S–96, 2D–140
RWY 17R: Rgt tfc.
RWY 35L: Trees.
SERVICE: S2 FUEL 100LL, JET A LGT When ATCT clsd MIRL Rwy 17L–35R preset low intst; to incr intst and ACTVT MALSR Rwy 17L; PAPI Rwy 17L and Rwy 35R–121.7.
AIRPORT REMARKS: Attended Mon–Fri 1200–0000Z‡. Extv flt trng in arpt tfc area sfc to 3000 ft AGL. APU avbl for jet acft. Rwy 17R–35L no lights. Used primarily for, but not limited to, taxiing and helicopter ops during non–daylight hours. Rwy 17R–35L green cntrln reflectors alg full len of rwy.
AIRPORT MANAGER: 254-867-2280
WEATHER DATA SOURCES: AWOS–3PT 134.225 (254) 867–3880. LAWRS.
COMMUNICATIONS: CTAF 124.0 UNICOM 122.95
WACO RCO 122.15 (FORT WORTH RADIO)
®WACO APP CON 127.65 DEP CON 126.125 (1200–0600Z‡)
®FORT WORTH CENTER APP/DEP CON 133.3 (0600–1200Z‡)
TOWER 124.0 (1300–0500Z‡) GND CON 121.7
AIRSPACE: CLASS D svc 1300–0500Z‡; other times CLASS E.
RADIO AIDS TO NAVIGATION: NOTAM FILE ACT.
WACO (VH) (H) VORTACW 115.3 ACT Chan 100 N31°39.73′ W97°16.14′ 089° 10.1 NM to fld. 507/9E.
VOR unusable:
125°–149° byd 40 NM
149°–159° byd 47 NM
159°–187° byd 40 NM
188°–198° byd 40 NM blo 12,000′
199°–234° byd 40 NM
235°–245° byd 50 NM
246°–256° byd 40 NM blo 18,000′
246°–256° byd 52 NM
257°–267° byd 58 NM
268°–282° byd 40 NM
270°–335° byd 35 NM blo 4,000′
283°–293° byd 40 NM blo 6,000′
283°–293° byd 58 NM
294°–330° byd 40 NM
ROBINSON NDB (MHW) 400 ROB N31°30.23′ W97°04.18′ 355° 8.0 NM to fld. 392/3E. NOTAM FILE FTW.
ILS 110.7 I–CNW Rwy 17L. Unmonitored.
ASR (1200–0600Z‡)
