NEW IBERIA
ACADIANA RGNL (ARA)(KARA) 4 NW UTC–6(–5DT) N30°02.27′ W91°53.03′ 24 B LRA ARFF Index–See Remarks NOTAM FILE ARA

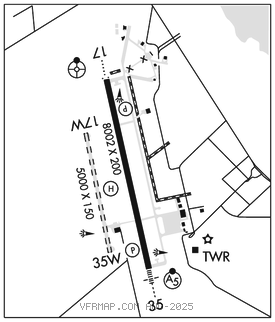

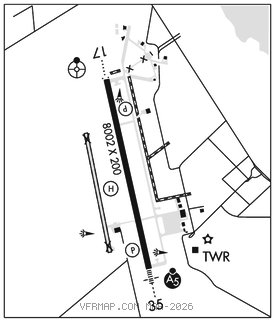

RWY 17–35: H8002X200 (CONC–GRVD) D–105, 2S–133, 2D–163, 2D/2D2–400 PCN 39 R/B/W/T HIRL
RWY 17: ODALS. PAPI(P4L)–GA 3.0° TCH 51′.
RWY 35: MALSR. PAPI(P4L)–GA 3.0° TCH 52′. Rgt tfc.
RUNWAY DECLARED DISTANCE INFORMATION
RWY 17: TORA–8002 TODA–8002 ASDA–8002 LDA–8002
RWY 35: TORA–8002 TODA–8002 ASDA–8002 LDA–8002
SERVICE: S2 FUEL 100LL, JET A OX 4 LGT When ATCT clsd HIRL Rwy 17–35 preset low intst. To incr intst–CTAF. MALSR Rwy 35 on consly. ACTVT seaway edge lgts Rwy 17W–35W–122.7 3 clicks on 7 clicks off.
AIRPORT REMARKS: Attended 1300–0300Z‡. For fuel after hrs call 337–367–1401, FAX 337–367–1404. Seaplane landing area (water channel) W of and adjacent/parallel to runway. Bird activity on and invof arpt. Class IV, ARFF Index A. ARFF Index B btn 0200Z‡ and 1030Z‡ Mon thru Fri. PPR for more than 30 psgr seats call AMGR 337–365–7202 (M–F 1430–2230Z‡). Rotor wing movement and landing area between the rwy and seaway. Intensive helicopter training. Compass rose not avbl. No overnight camping.
AIRPORT MANAGER: (337) 365-7202
WEATHER DATA SOURCES: ASOS 133.325 (337) 365–0128.
COMMUNICATIONS: CTAF 125.0 UNICOM 122.95
®LAFAYETTE APP/DEP CON 121.1 (1130–0430Z‡)
HOUSTON CENTER APP/DEP CON 126.35 (0430–1130Z‡)
TOWER 125.0 (1200–0300Z‡) GND CON 121.7 CLNC DEL 121.7
LAFAYETTE CLNC DEL 118.05 (When twr clsd)
CLEARANCE DELIVERY PHONE: For CD when Apch clsd ctc Houston ARTCC at 281-230-5622.
AIRSPACE: CLASS D svc 1200–0300Z‡; other times CLASS G.
RADIO AIDS TO NAVIGATION: NOTAM FILE LFT.
LAFAYETTE (L) (L) VORTACW 109.8 LFT Chan 35 N30°11.63′ W91°59.55′ 146° 10.9 NM to fld. 36/3E.
TACAN AZIMUTH unusable:
295°–320° blo 4,000′
ILS/DME 108.9 I–ARA Chan 26 Rwy 35. Class IE. • • • • • • • • • • • • • • • • • •
WATERWAY 17W–35W: 5000X150 (WATER) MIRL
WATERWAY 17W: Rgt tfc.
RUNWAY DECLARED DISTANCE INFORMATION
RWY 17W:TORA–5000 TODA–5000 ASDA–5000 LDA–5000
RWY 35W:TORA–5000 TODA–5000 ASDA–5000 LDA–5000
SEAPLANE REMARKS: Waterway 17–35 NSTD seaway edge lgts green, thld lgts amber. ACTIVATE seaway edge lgts Waterway 17–35–122.7. 3 clicks on 7 clicks off. • • • • • • • • • • • • • • • • • •
HELIPAD H1: 23X23 (DECK)
