GASTONIA MUNI (AKH)(KAKH) 4 S UTC–5(–4DT) N35°12.16′ W81°08.99′
798 B NOTAM FILE AKH

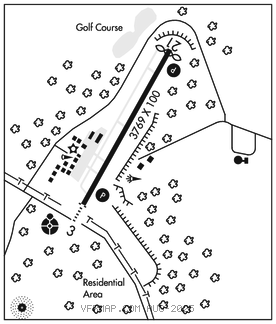

RWY 03–21: H3769X100 (ASPH) S–24 MIRL 0.4% up SW
RWY 03: ODALS. PAPI(P2R)—GA 3.0° TCH 26′. Road.
RWY 21: PAPI(P2L)—GA 3.0° TCH 38′. Thld dsplcd 81′. Trees.
SERVICE: S4 FUEL 100LL, JET A1+ LGT ACTVT ODALS Rwy 03; PAPI Rwy 03 and 21; MIRL Rwy 03–21—CTAF.
NOISE: Noise abatement: from 0300–1100Z‡ pilots are requested to use Rwy 21 as calm wind rwy & do runups on ramp; not rwy end. To avoid low alt turns to the west req clnc thru Class B asp from Charlotte Apch.
AIRPORT REMARKS: Attended Mon–Sun 1300–2200Z‡. Unatndd Christmas Day. Deer on and invof arpt. For svc after hrs call 704–201–1500. Rwy 03—15′ road 292′ fm thr L and R of cntrln. Rwy 21—50′ drop–off 300′ fm dsplcd thr L & R of cntrln and unmarked p–lines 370′ fm dsplcd thr L & R of cntrln. Rwy 03–21 no line of sight btn rwy ends.
AIRPORT MANAGER: 704-869-7844
WEATHER DATA SOURCES: ASOS 135.725 (704) 868–9034.
COMMUNICATIONS: CTAF/UNICOM 123.0
®CHARLOTTE APP/DEP CON 120.05
CLNC DEL 127.2
CLEARANCE DELIVERY PHONE: For CD ctc Charlotte Apch at 704-359-0241.
RADIO AIDS TO NAVIGATION: NOTAM FILE CLT.
CHARLOTTE (L) (L) VORW/DME 115.0 CLT Chan 97 N35°11.42′ W80°57.11′ 279° 9.8 NM to fld. 732/5W.
DME portion unusable:
015°–050° byd 25 NM blo 3,000′
050°–100° byd 25 NM blo 2,500′
185°–202° byd 15 NM
203°–220°
270°–350° byd 20 NM blo 5,000′
VOR/DME controlled by Charlotte ATCT
VOR unusable:
203°–220°
STONIA NDB (MHW) 260 GHJ N35°11.49′ W81°09.47′ at fld. 750/6W. NOTAM FILE RDU. NDB unmonitored 2330–1130Z‡ dur std time, 0030–1130Z‡ dur dalgt saving time.
