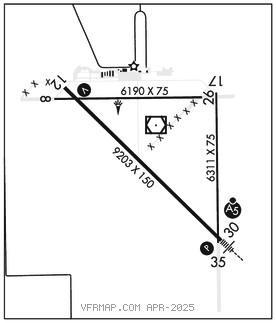

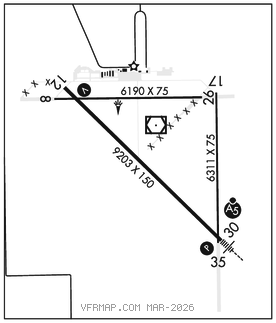

ALLIANCE MUNI (AIA)(KAIA) 3 SE UTC–7(–6DT) N42°03.19′ W102°48.23′
3931 B Class III, ARFF Index A NOTAM FILE AIA
RWY 12–30: H9203X150 (ASPH–AFSC) S–36, D–48, 2D–80 PCN 42 F/A/W/U MIRL
RWY 12: REIL. VASI(V4L)–GA 3.0° TCH 39′.
RWY 30: MALSR. PAPI(P4L)–GA 3.0° TCH 53′.
RWY 17–35: H6311X75 (ASPH) S–24, D–30 PCN 17 F/A/W/U
RWY 08–26: H6190X75 (ASPH–PFC) S–36, D–48, 2D–80 PCN 28 F/A/W/U MIRL
RUNWAY DECLARED DISTANCE INFORMATION
RWY 08: TORA–6190 TODA–6190 ASDA–6190 LDA–6190
RWY 12: TORA–9202 TODA–9202 ASDA–9202 LDA–9202
RWY 17: TORA–6311 TODA–6311 ASDA–6311 LDA–6311
RWY 26: TORA–6200 TODA–6200 ASDA–6200 LDA–6200
RWY 30: TORA–9202 TODA–9202 ASDA–9202 LDA–9202
RWY 35: TORA–6311 TODA–6311 ASDA–6311 LDA–6311
SERVICE: S4 FUEL 100LL, JET A LGT Actvt MALSR Rwy 30; REIL Rwy 12; VASI Rwy 12; PAPI Rwy 30; MIRL Rwy 12–30 and Rwy 08–26–CTAF.
AIRPORT REMARKS: Attended continuously. Migratory waterfowl on and invof arpt. Ultralight and glider ops on and invof arpt. Haying ops on interior of arpt during summer months. Rwy 08–26 designated calm wind. Aerial spraying ops on and invof arpt. Occasional use by acft with no radio. Back taxiing. Rwy 17–35 unavbl for use by air carriers. Rwy 17–35 not avbl for sked acr opns with more than 9 psgr seats or unsked acr at least 31 psgr seats.
AIRPORT MANAGER: 308-762-4512
WEATHER DATA SOURCES: ASOS 135.075 (308) 762–1221.
COMMUNICATIONS: CTAF/UNICOM 123.0
RCO 122.3 (COLUMBUS RADIO)
®DENVER CENTER APP/DEP CON 127.95
CLEARANCE DELIVERY PHONE: For CD if una to ctc on FSS freq, ctc Denver ARTCC at 303-651-4257.
RADIO AIDS TO NAVIGATION: NOTAM FILE AIA.
(VL) (DH) VORW/DME 111.8 AIA Chan 55 N42°03.34′ W102°48.27′ at fld. 3925/11E.
VOR unusable:
001°–058° byd 40 NM
059°–069° byd 40 NM blo 5,600′
070°–360° byd 40 NM
ILS/DME 108.35 I–BYE Chan 20(Y) Rwy 30. Class IE. Unmonitored.
