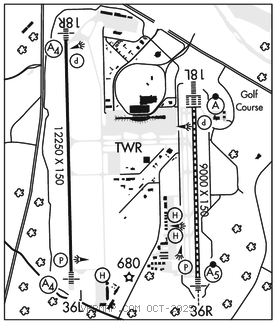

AUSTIN–BERGSTROM INTL (AUS)(KAUS) P (ARNG) 5 SE UTC–6(–5DT) N30°11.67′
W97°40.19′ 542 B LRA Class I, ARFF Index D NOTAM FILE AUS
RWY 18R–36L: H12250X150 (CONC–GRVD) S–120, D–250, 2D–550, 2D/2D2–1120 PCR 1070 R/B/W/T HIRL
RWY 18R: MALS. PAPI(P4L)–GA 3.0° TCH 60′. RVR–TR Rgt tfc.
RWY 36L: MALS. PAPI(P4L)–GA 3.0° TCH 60′. RVR–TR
RWY 18L–36R: H9000X150 (CONC–GRVD) S–120, D–250, 2D–513, 2D/2D2–1033 PCR 900 R/B/W/T HIRL CL
RWY 18L: ALSF2. TDZL. PAPI(P4L)–GA 3.0° TCH 74′. RVR–TMR Tower.
RWY 36R: MALSR. TDZL. PAPI(P4L)–GA 3.0° TCH 59′. RVR–TMR Rgt tfc.
RUNWAY DECLARED DISTANCE INFORMATION
RWY 18L:TORA–9000 TODA–9000 ASDA–9000 LDA–9000
RWY 18R:TORA–12250TODA–12250 ASDA–12250 LDA–12250
RWY 36L:TORA–12250 TODA–12250 ASDA–12250 LDA–12250
RWY 36R:TORA–9000 TODA–9000 ASDA–9000 LDA–9000
SERVICE: S2 FUEL 100LL, JET A OX 3, 4 MILITARY– FUEL A+ (C512–530–5451) (NC–100LL, A) FLUID HPOX
NOISE:Noise abatemnent: All dep follow ATC instructions; climb ASAP to 4000′ or above. During the hrs 0600–1200Z‡ arrg acft will be asgnd Rwy 36L or Rwy 36R and departing acft will be asgnd Rwy 18L or Rwy 18R to avoid noise sensitive areas.
AIRPORT REMARKS: Attended continuously. Bird activity on and invof arpt. PPR engine maintenance run–ops call ops 512–530–7550. PPR GA acft on the passenger terminal apron, call ops 512–530–7550. Twy A clsd to acft with wingspan more than 171′. PPR for non State of Texas aircarft entering the State Ramp abeam Twy E. Call State Ops 512–936–8900 or freq. 131.375. Txln R4 clsd to acft with wingspan more than 135 ft. Txln C2 clsd to acft with wingspan more than 171 ft. Txln R1, R3, R5 clsd to acft with wingspan more than 118 ft. Txln C2 btwn Twy C and G1, and Txln R1 clsd 0200–1400Z‡. SAID in use. Operate transponders with altitude reporting mode and ADS–B (if equipped) enabled on all airport surfaces.
AIRPORT MANAGER: 512-530-8846
WEATHER DATA SOURCES: ASOS (512) 369–7881 WSP.
COMMUNICATIONS: UNICOM 122.95 D–ATIS 124.4 (512) 369–7867.
AUSTIN RCO 122.2 (SAN ANGELO RADIO)
®AUSTIN APP/DEP CON 127.225 (East) 120.875 (South) 119.0 (West)
AUSTIN TOWER 121.0 GND CON 121.9 CLNC DEL 125.5 RAMP CTL 126.225
CPDLC (LOGON KUSA)
PDC
AIRSPACE: CLASS C svc ctc APP CON.
RADIO AIDS TO NAVIGATION: NOTAM FILE AUS.
CENTEX (VH) (H) VORTACW 112.8 CWK Chan 75 N30°22.71′ W97°31.79′ 207° 13.2 NM to fld. 593/6E.
VOR unusable:
180°–190° byd 40 NM
200°–210° byd 40 NM
ILS/DME 110.5 I–VNK Chan 42 Rwy 18L. Class IIIE. DME also serves Rwy 36R.
ILS/DME 110.95 I–GFQ Chan 46(Y) Rwy 18R. Class IE. DME also serves Rwy 36L.
ILS/DME 110.95 I–BSM Chan 46(Y) Rwy 36L. Class IE. DME also serves Rwy 18R.
ILS/DME 110.5 I–HCE Chan 42 Rwy 36R. Class IIE. DME also serves Rwy 18L.
COMM/NAV/WEATHER REMARKS: Ctc ramp ctl at 126.225 prior to entry/exit to/fm the trml apn. • • • • • • • • • • • • • • • • • •
HELIPAD H1: H60X60 (CONC)
HELIPAD H2: H60X60 (CONC)
HELIPAD H3: H50X50 (CONC)
