MOSES LAKE
GRANT CO INTL (MWH)(KMWH) 5 NW UTC–8(–7DT) N47°12.52′ W119°19.15′ 1189 B ARFF Index–See Remarks NOTAM FILE MWH

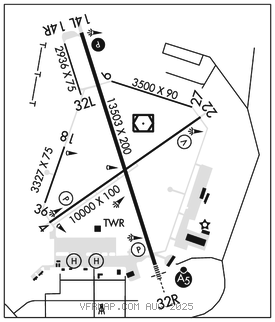

RWY 14L–32R: H13503X200 (CONC–GRVD) S–85, D–155, 2S–175, 2D–320, 2D/2D2–600 PCN 103R/B/W/T HIRL
RWY 14L: REIL. PAPI(P4L)–GA 3.0° TCH 75′. Bldg.
RWY 32R: MALSR. PAPI(P4L)–GA 3.0° TCH 76′. Rgt tfc.
RWY 04–22: H10000X100 (CONC–GRVD) S–75, D–100, 2S–127, 2D–175, 2D/2D2–475 PCN 92 R/B/W/T MIRL
RWY 04: REIL. PAPI(P4L)–GA 3.0° TCH 49′. 0.4% down.
RWY 22: REIL. VASI(V4L)–GA 3.0° TCH 50′. Rgt tfc. 0.3% up.
RWY 09–27: H3500X90 (CONC–GRVD) S–100, D–150, 2S–270, 2D–270, 2D/2D2–475 PCN 53 R/B/W/T RWY LGTS(NSTD) 0.3% up NW
RWY 27: Rgt tfc.
RWY 18–36: H3327X75 (ASPH) S–75, D–170, 2S–175, 2D–300, 2D/2D2–400 PCN 112F/A/W/T MIRL
RWY 18: Rgt tfc.
RWY 14R–32L: H2936X75 (CONC) S–100, D–200, 2S–175, 2D–400, 2D/2D2–400 PCN 107R/B/W/T
RWY 14R: Ground. Rgt tfc.
LAND AND HOLD–SHORT OPERATIONS
LDG RWY HOLD–SHORT POINT AVBL LDG DIST
RWY 04 14L–32R 4700
RWY 14L 04–22 7550
RWY 22 14L–32R 4650
RWY 32R 04–22 5050
RUNWAY DECLARED DISTANCE INFORMATION
RWY 04: TORA–10000 TODA–10000 ASDA–10000 LDA–10000
RWY 09: TORA–3500 TODA–3500 ASDA–3500 LDA–3500
RWY 14L:TORA–13503 TODA–13503 ASDA–13503 LDA–13503
RWY 14R:TORA–2936 TODA–2936 ASDA–2936 LDA–2936
RWY 22: TORA–10000 TODA–10000 ASDA–10000 LDA–10000
RWY 27: TORA–3500 TODA–3500 ASDA–3500 LDA–3500
RWY 32L:TORA–2936 TODA–2936 ASDA–2936 LDA–2936
RWY 32R:TORA–13503TODA–13503 ASDA–13492 LDA–13492
SERVICE: S4 FUEL 100LL, JET A, A1+ OX 1 LGT ACTVT MALSR Rwy 32R; REIL Rwy 04; PAPI Rwy 14L–CTAF. Rwy 09–27 mil ldg zone lgts only.
AIRPORT REMARKS: Attended continuously. Rwy 09–27 CLOSED exc mil ops; C–17 assault strip. Not vis fm ATCT. Birds invof arpt Apr and Oct. Rwy 14L conc tdz fst 3240 ft; Rwy 32R conc tdz fst 1490 ft. Class IV, ARFF Index A. PPR for air carrier ops with gtr than 30 pax seats 0600–1400Z‡ – 509–762–5363. ARFF dep Index D H24. Twy F not vis fm ATCT. No edge intensity lgtg. Rwy 32R fst 10,000′ grvd 150′ wide. Twy G unlighted. Hvy mil jet ngt training 0300–1100Z‡. When ATCT clsd annc lndg intns–CTAF. Hvy jet trng sfc to 5000′ wi 25 mi; psbl wake turb fm Rwy 09–27 and Rwy 14L–32R. Acr twy mov area only. All rapid rfl mil hel acft ctc– C509–762–2222 or 131.625 for svc one hr prior to lndg. Procd to trml ramp. Rapid rfl avbl dalgt dly. Ldg fee. Landing fees ovr 12,500.
AIRPORT MANAGER: 509-762-5363
WEATHER DATA SOURCES: ASOS 119.05 (509) 762–5082. LAWRS.
COMMUNICATIONS: CTAF 118.25 ATIS 119.05 UNICOM 122.95
MOSES LAKE RCO 122.4 (SEATTLE RADIO)
®GRANT COUNTY APP/DEP CON 126.4 (1400–0600Z‡)
®SEATTLE CENTER APP/DEP CON 126.1 (0600–1400Z‡)
TOWER 128.0 (WEST) 118.25 (EAST) (1400–0600Z‡) GND CON 121.9
AIRSPACE: CLASS D svc 1400–0600Z‡; other times CLASS E.
RADIO AIDS TO NAVIGATION: NOTAM FILE MWH.
MOSES LAKE (VH) (DH) VORW/DME 115.0 MWH Chan 97 N47°12.65′ W119°19.01′ at fld. 1193/18E.
VOR unusable:
025°–040° byd 40 NM
055°–070° byd 40 NM
071°–081° byd 40 NM blo 28,000′
175°–198° byd 40 NM blo 6,000′
175°–198° byd 67 NM blo 10,000′
175°–198° byd 70 NM
200°–210° byd 40 NM
220°–230° byd 40 NM
240°–253° byd 40 NM blo 18,000′
254°–260° byd 40 NM
315°–345° byd 40 NM
PELLY NDB (MHW/LOM) 408 MW N47°06.94′ W119°16.47′ 324° 5.9 NM to fld. 1136/18E.
ILS 109.5 I–MWH Rwy 32R. Class IB. LOM PELLY NDB. ILS and COMLO unmonitored when ATCT clsd. • • • • • • • • • • • • • • • • • •
HELIPAD H1: H50X50 (ASPH)
HELIPAD H2: H50X50 (ASPH)
