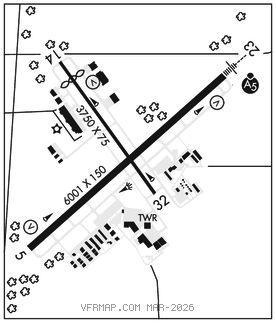

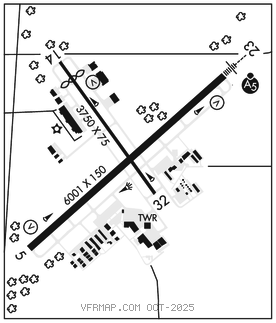

WAUKEGAN NTL (UGN)(KUGN) 35 N UTC–6(–5DT) N42°25.33′ W87°52.07′
728 B NOTAM FILE UGN
RWY 05–23: H6001X150 (ASPH–GRVD) S–95, D–120, 2S–152, 2D–200 HIRL
RWY 05: REIL. VASI(V4L)—GA 3.0° TCH 35′. Road.
RWY 23: MALSR. VASI(V4L)—GA 3.0° TCH 52′. Tree. Rgt tfc.
RWY 14–32: H3750X75 (ASPH) S–16, D–23 MIRL 0.4% up NW
RWY 14: VASI(V4L)—GA 3.5° TCH 30′. Thld dsplcd 489′. Road.
SERVICE: S4 FUEL 100LL, JET A OX 1, 2, 3, 4 LGT ACTIVATE MALSR Rwy 23; REIL Rwy 05; HIRL Rwy 05–23;twy lgts—CTAF. When twr clsd MIRL Rwy 14–32 preset low intst; to incr intst and ACTIVATE—CTAF.
AIRPORT REMARKS: Attended continuously. Birds on and invof arpt. Fuel is prvdd by a DoD contract. 100 LL avbl 24hr with credit card fm self serve pump on tsnt ramp. User fee arpt: for US Customs 2 hrs min advn notice rqrd Mon–Fri 1700–0100Z‡ & by 2200Z‡Fri for wkend arrivals. Ctc Customs and Border Protection (224) 529–1468.
AIRPORT MANAGER: 847-244-0055
WEATHER DATA SOURCES: ASOS (847) 782–0876
COMMUNICATIONS: CTAF 120.05 ATIS 132.4
®CHICAGO APP/DEP CON 120.55
TOWER 120.05 (1200–0200Z‡) GND CON 121.65
CLEARANCE DELIVERY PHONE: For CD when ATCT is clsd ctc Chicago Apch at 847-289-0926.
AIRSPACE: CLASS D svc 1200–0200Z‡; other times CLASS E.
RADIO AIDS TO NAVIGATION: NOTAM FILE IKK.
NORTHBROOK (VH)(DH)VORW/DME 113.0 OBK Chan 77 N42°13.28′ W87°57.10′ 019° 12.6 NM to fld. 708/2W.
DME unusable:
215°–330° byd 35 NM blo 3,000′
VOR unusable:
265°–272° byd 40 NM
273°–283° byd 40 NM blo 18,000′
284°–288° byd 40 NM
NDB (LOMW) 379 UG N42°27.83′ W87°48.08′ 233° 3.9 NM to fld. 587/3W. NOTAM FILE UGN.
ILS 110.7 I–UGN Rwy 23. Class IT. LOM WAUKE NDB.
