KLAMATH FALLS
CRATER LAKE/KLAMATH RGNL (LMT)(KLMT) P (ANG) 4 SE UTC–8(–7DT) N42°09.37′ W121°43.99′ 4095 B Class IV, ARFF Index A NOTAM FILE LMT

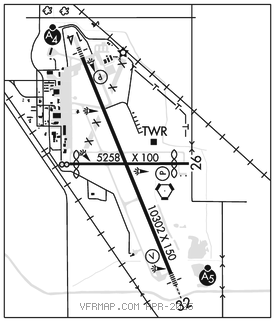

RWY 14–32: H10302X150 (ASPH–CONC–GRVD) S–120, D–243, 2S–175, 2D–474, 2D/2D2–970 PCR 560 F/A/W/T HIRL
RWY 14: MALSF. PAPI(P4L)–GA 3.2° TCH 53′. RVR–R
RWY 32: MALSR. VASI(V4L)–GA 3.0° TCH 55′. RVR–T
RWY 08–26: H5258X100 (ASPH–GRVD) S–41, D–68, 2D–116 PCR 110 F/A/X/T MIRL
RWY 08: Thld dsplcd 306′. Railroad.
RWY 26: REIL. PAPI(P4L)–GA 2.83° TCH 34′. Thld dsplcd 512′. Fence.
RUNWAY DECLARED DISTANCE INFORMATION
RWY 08: TORA–5258 TODA–5258 ASDA–5258 LDA–4952
RWY 14: TORA–10302 TODA–10302 ASDA–10302 LDA–10302
RWY 26: TORA–5258 TODA–5258 ASDA–5258 LDA–4746
RWY 32: TORA–10302 TODA–10302 ASDA–10302 LDA–10302
ARRESTING GEAR/SYSTEM
RWY 14 TYPE H BAK–12B(B)(1500') TYPE H BAK–12B(B)(1500') RWY 32
SERVICE: S4 FUEL 100LL, JET A, A++ OX1, 3 LGT When ATCT clsd ACTVT MALSF Rwy 14, MALSR Rwy 32, HIRL Rwy 14–32, MIRL Rwy 08–26 and twy lgts–CTAF. Rwy and twy lgts also ACTVT on 257.8. REIL Rwy 26; PAPI Rwy 26, PAPI Rwy 14 and VASI Rwy 32 opr consly. Rwy 14 PAPI byd 3.5 NM unusbl. MILITARY– JASU 1(AM32A–60B) 1(A/M32A–86) 1(MD–3)
FUEL A, A+ (1500–0300Z‡; 20 min prior notice and fee C541–882–4681) (NC–100LL). FLUID SP LPOX LOX OIL O–133–148(Mil)
AIRPORT REMARKS: Attended Mon–Fri 1430–0100Z‡, unatndd wkend and hol. Offl bus PPR – D830–6686. Base ops 1400–2359Z‡ Wkdays; clsd hol. FBO – 541–882–4681. Waterfowl invof arpt Nov–May. Twy A west of Twy D and Twy D btn Twy E and Twy F mil ops only. Twy G South run up pad mil ops only. Twy B btn Twy B1 and Twy B2 wingtip to fixed object sepn nonstd; wingspan gtr than 133 ft minimize tax spd. Conds unmtr wkday 0630–1430Z‡, wkend and hol.
MILITARY REMARKS: ANG: Hvy acft aft lndg tax to N or S EOR; shtdn outboard engs bfr tax to mil ramp. Classified mtrl storage secret and blw–amgmt. Military BASH Phase II Feb–May and Sept– Nov. Otr times BASH Phase I. CSTMS/AG/IMG Svc NA. KPDX CSTM – 503–326–3249.
AIRPORT MANAGER: 541-883-5373
WEATHER DATA SOURCES: ASOS (541) 883–8127
COMMUNICATIONS: CTAF 133.975 ATIS 126.5 UNICOM 122.95
KLAMATH FALLS RCO 122.6 (MC MINNVILLE RADIO)
®KINGSLEY APP/DEP CON 123.675 (Mon–Fri 1600–0000Z‡ exc weekends and holidays. other times ctc)
®SEATTLE CENTER APP/DEP CON 127.6
KINGSLEY TOWER 133.975 (1500–0400Z‡) GND CON 121.9
CLEARANCE DELIVERY PHONE: For CD if una to ctc on FSS freq, ctc Seattle ARTCC at 253-351-3694.
AIRSPACE: CLASS D svc 1500–0400Z‡; other times CLASS E.
RADIO AIDS TO NAVIGATION: NOTAM FILE LMT.
KLAMATH FALLS (VH) (H) VORTACW 115.9 LMT Chan 106 N42°09.19′ W121°43.65′ at fld. 409017E.
VOR unusable:
050°–060° byd 30 NM blo 12,000′
060°–120° byd 25 NM blo 12,000′
126°–136° byd 40 NM blo 14,000′
126°–136° byd 97 NM
141°–149° byd 40 NM
150°–160° byd 40 NM blo 18,000′
161°–168° byd 40 NM
169°–179° byd 40 NM blo 18,000′
170°–195° byd 20 NM
180°–194° byd 40 NM
201°–266° byd 40 NM
210°–245° byd 25 NM blo 12,000′
267°–277° byd 40 NM blo 9,500′
267°–277° byd 62 NM
270°–280° byd 20 NM
278°–304° byd 40 NM
320°–050° byd 23 NM blo 12,000′
320°–050° byd 30 NM
321°–327° byd 40 NM
328°–344° byd 40 NM blo 19,000′
345°–124° byd 40 NM
TACAN AZIMUTH unusable:
105°–125° byd 7 NM blo 12,000′
153°–195° byd 20 NM blo 11,000′
210°–305° byd 25 NM blo 10,500′
320°–105° byd 13 NM blo 13,000′
320°–125° byd 20 NM
DME unusable:
105°–125° byd 7 NM blo 12,000′
153°–195° byd 20 NM blo 11,000′
210°–305° byd 25 NM blo 10,500′
320°–105° byd 13 NM blo 13,000′
320°–125° byd 20 NM
ILS 109.5 I–LMT Rwy 32. Class IE. LOC unusable byd 25° right of course. LOC unusable byd 25° left of course.
