GILLETTE
NORTHEAST WYOMING RGNL (GCC)(KGCC) 4 NW UTC–7(–6DT) N44°20.93′ W105°32.36′ 4365 B TPA–See Remarks Class I, ARFF Index A NOTAM FILE GCC

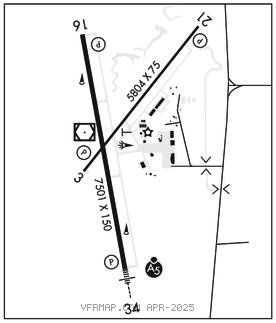

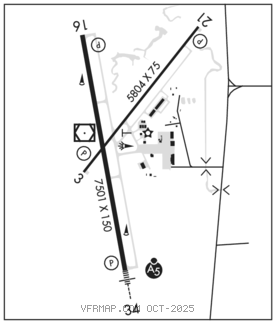

RWY 16–34: H7501X150 (CONC–GRVD) S–70, D–110, 2S–139, 2D–160 PCR 580 R/D/W/T HIRL 0.4% up SE
RWY 16: REIL. PAPI(P4L)–GA 3.17° TCH 43′. Road.
RWY 34: MALSR. PAPI(P4L)–GA 3.2° TCH 56′. P–line.
RWY 03–21: H5804X75 (CONC–GRVD) S–40, D–60 PCR 240 R/D/W/T MIRL 0.4% up SW
RWY 03: REIL. PAPI(P4L)–GA 4.0° TCH 41′.
RWY 21: REIL. PAPI(P4L)–GA 4.0° TCH 39′.
RUNWAY DECLARED DISTANCE INFORMATION
RWY 03: TORA–5803 TODA–5803 ASDA–5803 LDA–5803
RWY 16: TORA–7500 TODA–7500 ASDA–7500 LDA–7500
RWY 21: TORA–5803 TODA–5803 ASDA–5803 LDA–5803
RWY 34: TORA–7500 TODA–7500 ASDA–7500 LDA–7500
SERVICE: S4 FUEL 100LL, JET A OX 1, 2 LGT ACTVT MALSR Rwy 34; REILS Rwys 03, 16 and 21; HIRL Rwy 16–34, MIRL Rwy 03–21–CTAF. Sequence flashers Rwy 34 avbl on high setting only. PAPI Rwys 03, 16, 21, 34 opr consly.
AIRPORT REMARKS: Attended 1200–0700Z‡. Conds unmon. Fuel avbl H24 via credit card. Birds invof arpt. Mining/blasting opns 1/2 mile NE AER 21 dur dalgt hrs. TPA–5165(800) for light acft, 5565(1200) for large acft. PPR unscheduled air carrier ops with more than 30 pax seats call amgr 307–686–1042. Opn on unpaved sfcs prohibited.
AIRPORT MANAGER: 307-686-1042
WEATHER DATA SOURCES: ASOS 124.175 (307) 225–9101.
COMMUNICATIONS: CTAF 118.5 UNICOM 122.95
GILLETTE RCO 122.3 (CASPER RADIO)
®DENVER CENTER APP/DEP CON 135.6
CLEARANCE DELIVERY PHONE: For CD ctc Denver ARTCC at 303-651-4257.
AIRSPACE: CLASS E svc 1300–0600Z‡; other times CLASS G.
RADIO AIDS TO NAVIGATION: NOTAM FILE GCC.
GILLETTE (VH) (H) VORW/DME 114.6 GCC Chan 93 N44°20.87′ W105°32.61′ at fld. 4336/9E.
VOR unusable:
053°–157° byd 40 NM
158°–168° byd 40 NM blo 10,000′
158°–168° byd 56 NM
169°–188° byd 40 NM
189°–199° byd 40 NM blo 8,500′
189°–199° byd 46 NM
200°–238° byd 40 NM
253°–278° byd 20 NM blo 8,000′
259°–279° byd 40 NM
280°–320° byd 40 NM
DME unusable:
163°–193° byd 25 NM blo 10,300′
193°–268° byd 20 NM blo 8,000′
193°–268° byd 30 NM blo 13,000′
268°–333° byd 22 NM blo 10,500′
DERYK NDB (MHW/LOM) 380 GC N44°16.25′ W105°31.33′ 342° 4.7 NM to fld. 4674/9E. NDB unmonitored 0500–1300Z‡.
ILS/DME 110.1 I–LLT Chan 38 Rwy 34. Class IE. LOM DERYK NDB. Glideslope unusable byd 8 NM. Unmonitored when ATCT clsd.
