HENDERSON EXEC (HND)(KHND) 11 S UTC–8(–7DT) N35°58.37′ W115°08.06′
2491 B NOTAM FILE HND

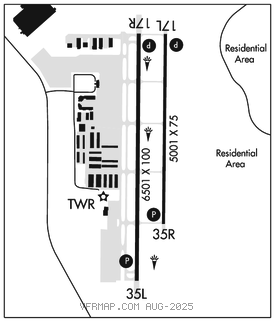

RWY 17R–35L: H6501X100 (ASPH) S–30, D–60 MIRL 1.4% up S
RWY 17R: REIL. PAPI(P4L)–GA 3.0° TCH 40′.
RWY 35L: REIL. PAPI(P4L)–GA 4.3° TCH 52′. Road.
RWY 17L–35R: H5001X75 (ASPH) S–30, D–30 MIRL 1.4% up S
RWY 17L: REIL. PAPI(P4L)–GA 3.0° TCH 40′.
RWY 35R: REIL. PAPI(P4L)–GA 4.3° TCH 52′.
SERVICE: S2 FUEL 100LL, JET A OX 1, 2 LGT ACTVT REIL Rwy 17R and 35L, Rwy 17L and 35R; PAPI Rwy 17R and Rwy 35L, Rwy 17L and Rwy 35R; MIRL Rwy 17R–35L, Rwy 17L–35R–CTAF.Rwy end 35L: PAPI unusbl byd 3.3 NM fm rwy thr. Rwy end 35R: PAPI unusbl byd 3.5 NM fm rwy thr.
AIRPORT REMARKS: Attended 1300–0630Z‡. 100LL self–svc H24. Coml air tour tfc arr fm SE dur dalgt hr. Ctn: acft dep Rwy 17R or Rwy 35L must verify psn on rwy not on parl twy. Rwy 17L–35R ops dly 0300–1500Z‡. When spl event prkg PPR program NOTAM is actv, tsnt acft opers not perm based need to obtain a PPR nr fm an FBO for ea ldg. PPR appvl and confirmation nrs can be obtained fm the sel FBO at 702–261–7775. PPR confirmation nrs should be entered in the rmks section of each flt plan. NOTE: See Special Notices–Arrival Alert.
AIRPORT MANAGER: 702-261-4802
WEATHER DATA SOURCES: AWOS–3PT 120.775 (702) 614–4537. Wx sensor type: includes type z – freezing rain sensor
COMMUNICATIONS: CTAF 125.1 ATIS 120.775 UNICOM 122.95
MOUNT POTOSI RCO 122.6 (RENO RADIO)
®LAS VEGAS APP/DEP CON 125.475
TOWER 125.1 (1400–0400Z‡) GND CON 127.8 CLNC DEL 135.35 125.475 (when twr clsd)
CLEARANCE DELIVERY PHONE: For CD when ATCT clsd ctc LAS Apch on 125.475 or ph 725-200-4432.
AIRSPACE: CLASS D svc 1400–0400Z‡; other times CLASS G.
RADIO AIDS TO NAVIGATION: NOTAM FILE RNO.
BOULDER CITY (VH) (H) VORTACW 116.7 BLD Chan 114 N35°59.75′ W114°51.81′ 249° 13.3 NM to fld. 3642/15E.
VOR unusable:
005°–010° byd 40 NM
057°–070° byd 40 NM blo 28,000′
071°–085° byd 40 NM blo 10,000′
071°–085° byd 52 NM blo 13,500′
071°–085° byd 71 NM blo 17,000′
071°–085° byd 95 NM
155°–180° byd 30 NM blo 9,000′
192°–205° byd 40 NM
208°–218° byd 40 NM blo 10,000′
208°–218° byd 88 NM
219°–232° byd 40 NM
245°–255° byd 40 NM
264°–274° byd 40 NM blo 29,000′
275°–288° byd 40 NM blo 24,000′
